High-Efficiency, Fully Automated Oil & Gas Steam Generation For Precision Process Industries.
The ISOTEX Evolution represents a new class of oil fired steam boilers — bringing large-system performance and efficiency within reach of smaller industrial operations. Factory-assembled, pre-commissioned, and ready for plug-and-play installation.
ISOTEX Ecotherm Wood Fired Thermic Fluid Heaters combine advanced multi-fuel combustion technology specifically optimised for wood-based fuels with intelligent automation, delivering exceptional thermal efficiency and precise high-temperature heat transfer while minimising emissions.
As a complete turnkey solution — from fuel handling and combustion system to thermic fluid circulation, emission control, and SMARTWIZ IoT monitoring — every Ecotherm unit is factory-engineered for plug-and-play installation, dramatically reducing on-site construction time and costs.
With 4,000+ heater installations globally, up to 74% reduction in site installation costs, and a commitment to EcoVadis sustainability standards, ISOTEX leads industries transitioning to wood-fired thermic fluid heating.
ISOTEX Ecotherm wood fired thermic fluid heaters are available across a comprehensive capacity spectrum — from 4 Lac kCal/hr. to 25 Lac kCal/hr. — to meet diverse industrial high-temperature heating requirements.
| Parameter | Value/Range | Unit/Notes |
|---|---|---|
|
Heat Output Capacity |
4,00,000 – 25,00,000 |
kCal/hr |
|
Max. TF Outlet Temperature |
Up to 280 |
°C (Standard) |
|
Thermal Efficiency |
Up to 82% |
On NCV Basis (BS 845) |
|
Heater Series |
ECOTHERM |
Factory-Assembeled Modular Design |
Engineered with advanced multi-fuel combustion systems, the Ecotherm is capable of efficiently burning a wide variety of wood-based fuels to maximise operational efficiency using locally available, cost-effective renewable resources.
Split or whole logs, ideal for large-grate stationary combustion systems
Chipped forestry and mill waste with consistent size for automated feeding
Fine wood particles from sawmills and furniture manufacturing
Compressed high-density pellets for consistent calorific value and clean burn
Offcuts, laminates, MDF dust, and all wood manufacturing waste
| Combustion System Options |
|---|
|
1. Stationary Grate — Ideal for wood logs, larger wood chips, and low-density wood fuels |
|
2. Pinhole Grate — Optimised for fine sawdust, wood shavings, and small particle wood waste |
|
3. Bubbling Bed — Advanced technology for mixed fuels and variable moisture content |
|
4. Dumping Grate — Heavy-duty system for high-moisture, high-ash wood fuels |
The Evolution introduces large-boiler technology — previously reserved for industrial-scale systems — into a compact, factory-assembled package delivering class-leading efficiency for process steam applications.
ROI Analysis: ISOTEX Evolution (4 TPH) vs. Standard Oil-Fired Boiler. Real numbers, real savings — calculated on 7,000 annual operating hours.
Operating Parameter | Value |
Heater capacity | 20,00,000 kCal/ |
Annual operating hours | 7,200 hrs |
Wood type | Wood (NCV ~3300 kCal/kg) |
Wood consumption (approx.) | ~739 tons/year |
Annual Wood fuel cost (approx.) | ₹2.6 Cr |
Equivalent Conventional Wood-Fired Thermic Fluid Heater | ₹ 2.9cr |
Annual fuel cost savings | ₹24 Lakh |
Typical Payback Period | 2.5 – Years |
Built to perform. Proven in the field. Real Isotex Oil Fired Boiler installations showcasing proven capability across industries.

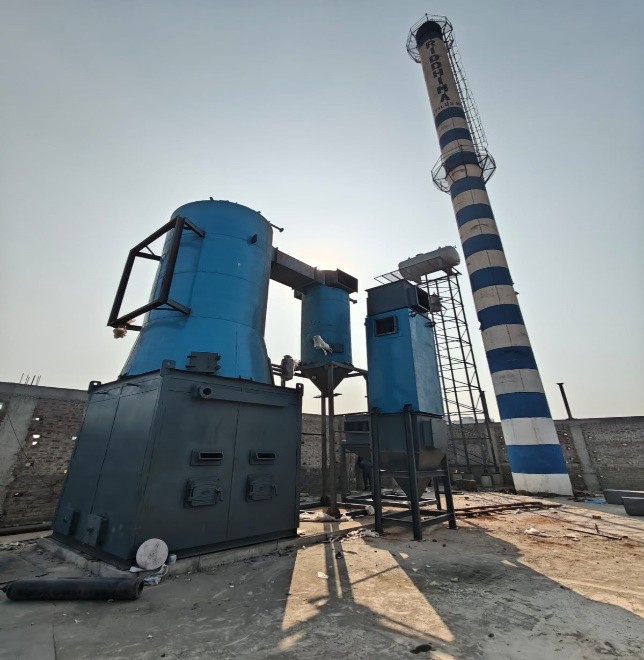

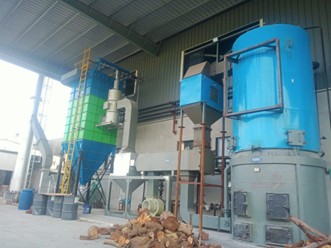

Wood Fired Thermic Fluid Heater for Pharma Industry in Gujarat
6 Lakh kCal/hr & 12 Lakh kCal/hr
Wood Chip

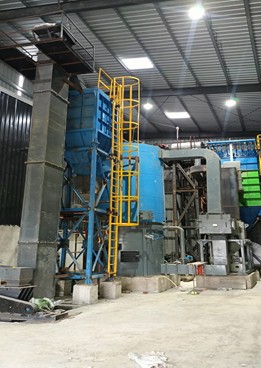

High Capacity Wood Fired Thermic Fluid Heater for Wood Industry in Gujarat
15 Lakh kCal/hr.
Wood Logs

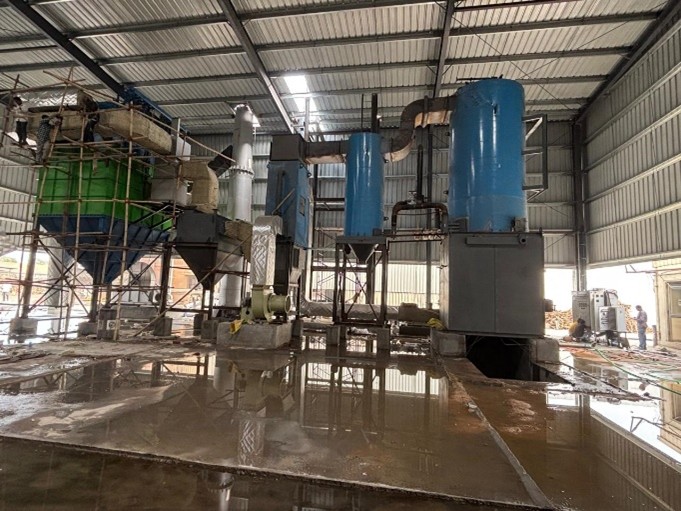

High Capacity Wood Fired Thermic Fluid Heater for Unknown Industry in Gujarat
20 Lakh kCal/hr
Wood
Wood Fired Thermic Fluid Heater for UNKNOWN Industry in UNKNOWN Location
0
0
Our engineering team responds within 24 hours. Share your capacity requirements and fuel preference. We’ll engineer the right solution.
